Regner Easy Line Gears

Regner Easy Line Gears
  Zoom

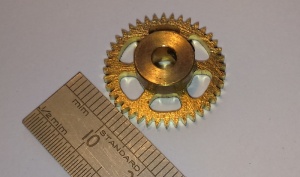

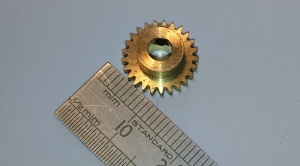

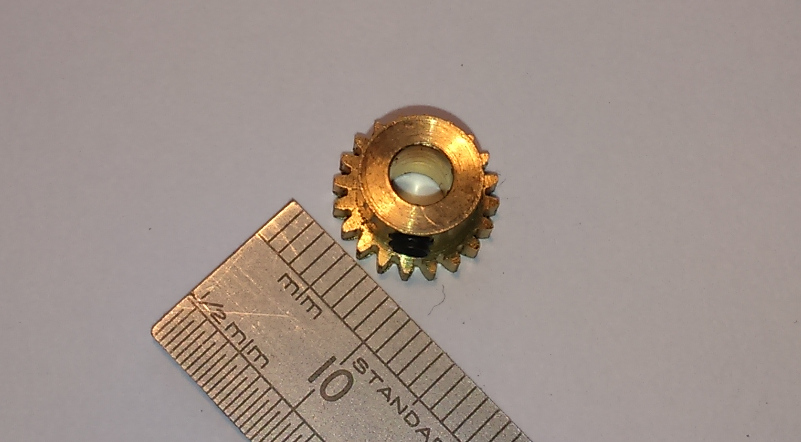

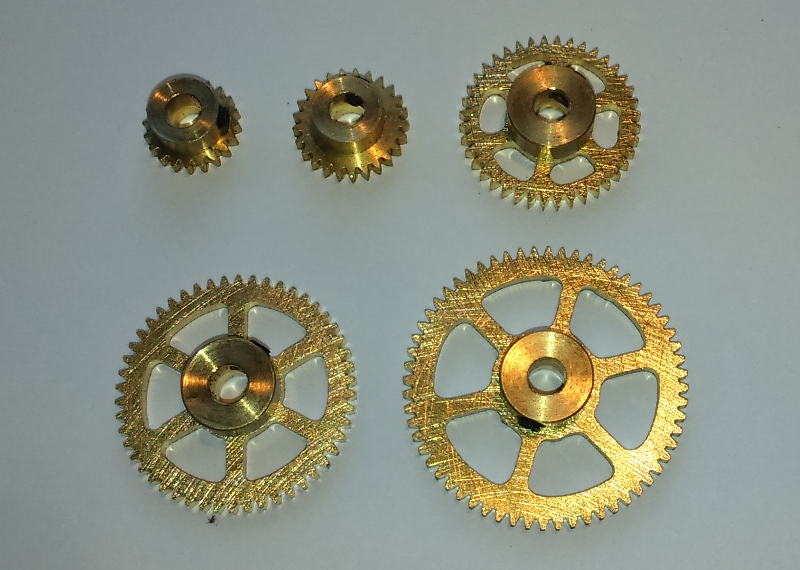

Option: 20 tooth-11mm DiameterOption: 25 Tooth-13mm DiameterOption: 40 Tooth-21mm Diameter

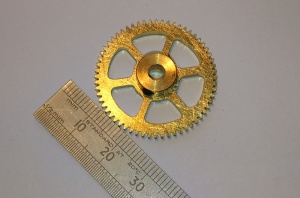

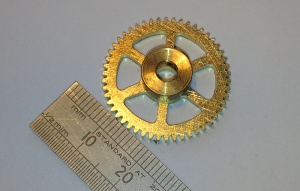

Option: 50 Tooth-26mm DiameterOption: 60 Tooth-31mm Diameter

Please click the options above for prices and availability.









Our Price:  £11.00(Inc. 20% VAT)
+


Brand:  Regner



The gears are now available individually, because in some cases not all the gears may need replacing. Sometimes perhaps because of misalignment you may find that just two may have worn.  The underframe gears in particular are prone to picking up dirt.

Replacement gears for Konrad, Willi, Vincent & Henry

Under frame gears: 1 x 50 Tooth (26mm Diameter), 1 x 25 Tooth (13mm Diameter).

Outer frame gears: 1 x 60 Tooth (31mm Diameter), ! x 20 Tooth (11mm Diameter).                                                                                                                                                                                                                                                                                                                                                 Replacement gears for Chaloner

​Underframe gears: 1 x 50 Tooth (26mm Diameter), 1 x 25 Tooth (13mm Diameter).

Outer frame gears: 2 x 40 Tooth (21mm Diameter).

Footplate centre gear (engages with motor unit gear): 1 x 50 Tooth (26mm Diameter).

Motor unit (between cranks): 1 x 25 Tooth (13mm Diameter).

Replacement gears for Lumber Jack

Axle: 1 x 50 Tooth (26mm Diameter).

Intermediate: 1 x 25 Tooth (13mm Diameter).

Motor unit (between cranks): 1 x 25 tooth (13mm Diameter).

Replacement gears for Nr102 'Paul' Tram

Axle: 1 x 50 Tooth (26mm Diameter)

Intermediate: Engages with axle gear 1 x 25 Tooth (13mm Diameter). Engages with motor unit 1 x 60 Tooth (31mm)

Motor unit: between cranks: 1 x 25 tooth (13mm Diameter)
