Regner Whistle Kit 20209

Zoom

Our Price:  £39.00(Inc. 20% VAT) –+ Add to Basket Brand:  Regner Availability:      In stock Share Tweet

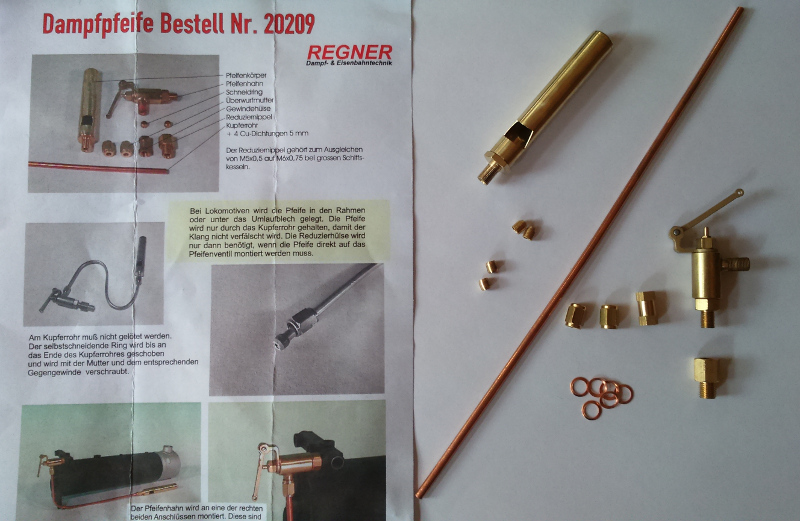

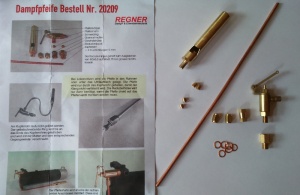

Whistle kit 20209. The illustrations are very helpful but as with most Regner items the instructions are in German. Basically Regner recommend that the whistle is just supported by the pipe only as anything touching the whistle could alter the tone. The whistle valve or supply pipe needs to be away from the gauge glass or water feed. The steam manifold in the cab on horizontal boilered Regner engines is split in two, the wet side for the gauge glass and water feed is on the left. The dry side on the right is for the pressure gauge, regulator and our whistle.  A very popular product not just for Regner engines so we have provided the thread sizes etc. Whistle length including thread (M5x0.5) 69mm Dia: 10mm. 210mm of 3mm copper pipe. 2 solder nipples. 2 compression olives. Connecting sleeve, M5 x 0.75. Reducing connector, outer M6 x 0.75, inner M5 x 0.5.  Whistle valve, thread M5 x 0.5, and copper washers.
